Description
giant revolt carbon gravel bike Giant Revolt 2The Giant Revolt is an aluminum all road and gravel bike built for riders who want one bike to handle pavement, gravel, and dirt. It combines a lightweight ALUXX aluminum frame with a carbon fork and adjustable geometry, giving you control over handling and tire clearance depending on your riding style. Key Functional Details ALUXX grade aluminum frame balances durability, weight, and ride quality Flip chip rear dropout adjusts wheelbase and tire

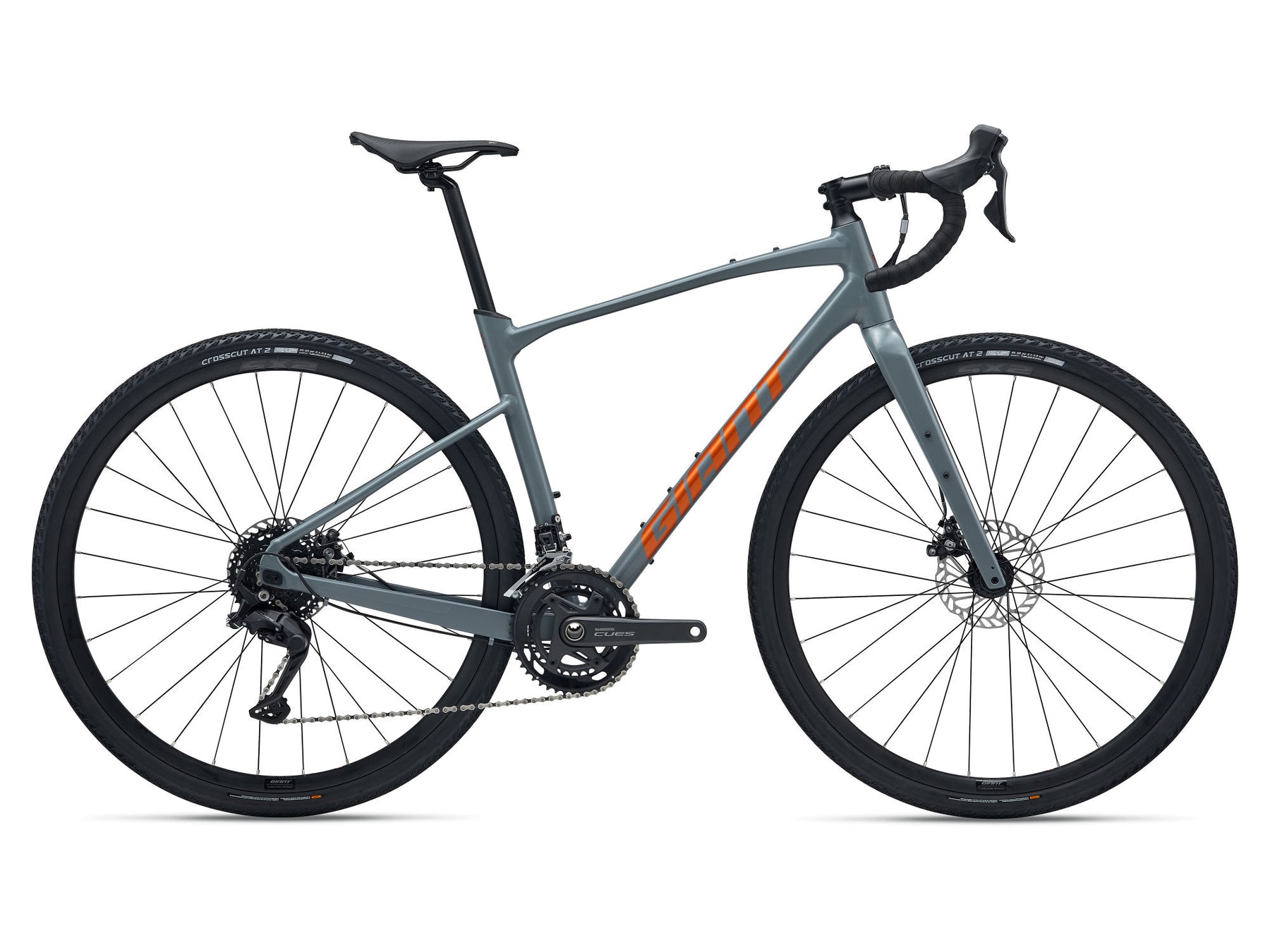

The Giant Revolt is an aluminum all-road and gravel bike built for riders who want one bike to handle pavement, gravel, and dirt. It combines a lightweight ALUXX aluminum frame with a carbon fork and adjustable geometry, giving you control over handling and tire clearance depending on your riding style.
Key Functional Details
- ALUXX-grade aluminum frame balances durability, weight, and ride quality
- Flip chip rear dropout adjusts wheelbase and tire clearance (up to 53mm)
- Carbon composite fork smooths vibration and improves front-end compliance
- D-Fuse seatpost and handlebar system reduces road shock without sacrificing stiffness
- Endurance geometry with longer reach and shorter stem for stability and control
- Mechanical disc brakes provide consistent stopping power in all conditions
- 700x45c tires included for immediate gravel-ready setup
Technical Specifications
| Frame | ALUXX Aluminum, 12x142mm thru-axle, flip chip dropout |
| Fork | Advanced Composite Carbon, 12mm thru-axle |
| Drivetrain | Shimano CUES or Shimano Sora, 2x9 |
| Crankset | Shimano FC-U6030-2, 32/46T |
| Cassette | Shimano 11-36T |
| Chain | KMC X11 |
| Brakes | Shimano BR-RS305 Mechanical Disc, 160mm rotors |
| Wheels | Giant S-X2 Alloy |
| Tires | CrossCut GRIP 1, 700x45c |
| Seatpost | Giant D-Fuse Alloy |
| Bottom Bracket | Threaded |
| Max Tire Clearance | 53mm (long position) / 45mm (short position) |
Compatibility & Technical Notes
- 700c platform with wide tire clearance for gravel and all-road use
- Flip chip allows geometry adjustment:
- Short position: quicker handling, up to 45mm tires
- Long position: increased stability, up to 53mm tires
- Compatible with 30.9mm round seatposts or dropper posts (replaces D-Fuse if needed)
- 12x142 rear and 12mm front thru-axle standard
- Threaded bottom bracket simplifies service and long-term maintenance
- Mechanical disc brakes are easy to service but require periodic cable adjustment
- NOT compatible with rim brakes
- NOT a dedicated mountain bike—limited for aggressive trail riding
Service / Ownership Context
This is a highly serviceable gravel platform. The threaded bottom bracket, mechanical disc brakes, and standard components make it easy to maintain long-term. It’s well-suited for riders who want reliability without the complexity of fully hydraulic or electronic systems.
Fit & Use Signals
- Good Fit: Riders mixing pavement, gravel, and dirt roads
- Good Fit: Bikepacking and endurance riding setups
- Good Fit: Riders wanting one bike for multiple surfaces
- Not A Fit: Aggressive singletrack or MTB trail riding
- Not A Fit: Pure road racing setups
- Not A Fit: Riders wanting hydraulic braking or electronic shifting at this level
